Compact Pneumatic Pipe Beveling Machine - Internal Mounted for Small Bore Weld Preparation

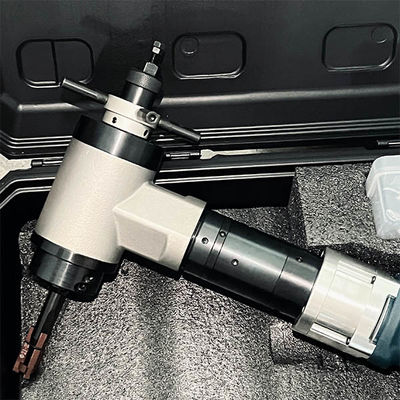

IDP30 Pneumatic Pipe Beveling Machine
The ID30 Pneumatic Pipe Beveling Machine is a compact, internally mounted cold-cutting solution engineered for precision small-bore weld preparation. Operating within 0.59" to 1.42" (Φ15-36 mm), it delivers burr-free beveling, facing, and counterboring without creating a heat-affected zone, ensuring compliance with the highest welding standards.
Designed for both fabrication shops and on-site field machining, the ID30 features a self-centering mandrel system, lightweight construction, and optional drive configurations, making it ideal for power generation, petrochemical plants, and boiler tube processing where accuracy and portability are essential.
Key Features
- Cold Cutting Technology: Advanced cold-cutting process eliminates heat-affected zones, ensuring precise edge geometry and maintaining base material integrity for code-compliant welds.
- Material Versatility: Capable of processing carbon steel, stainless steel, and high-alloy pipes, making it suitable for diverse industrial applications from boiler tube repair to petrochemical pipeline maintenance.
- Multi-Function Machining: Performs beveling, facing, counterboring, and J-prep with precision. Quick-change tool bits reduce downtime and increase productivity on-site.
- Lightweight & Portable: Weighing only 7.9 kg, the compact body and self-centering clamping system allow rapid setup in confined spaces, elevated work platforms, or restricted-access areas.
- Multiple Drive Options: Available in Bosh electric, MT electric, and pneumatic drive configurations to meet various job site conditions, including hazardous or non-electric environments.
Specifications
| Item | IDE-30 | IDP-30 | IDB-30 |
|---|---|---|---|
| Drive Type | MT electric motor | Pneumatic motor | Bosh Electric motor |
| Motor Power | 220-240 V, 50/60 Hz | 1.3 m³/min @ 0.6 Mpa | 220-240 V, 50/60 Hz |
| Motor Power | 0.9 Kw (1.21 Hp) / 4.5 A | 1.0 Kw (1.34 Hp) | 1.0 Kw (1.34 Hp) |
| Cutting Range (ID-OD) | Φ15-36 mm (0.59"-1.42") | Φ15-36 mm (0.59"-1.42") | Φ15-36 mm (0.59"-1.42") |
| ID Mounting Range | Φ15-28 mm (0.59"-1.10") | Φ15-28 mm (0.59"-1.10") | Φ15-28 mm (0.59"-1.10") |
| Wall Thickness | ≤8 mm (0.31") | ≤8 mm (0.31") | ≤8 mm (0.31") |
| Feed Stroke | 25 mm (0.98") | 25 mm (0.98") | 25 mm (0.98") |
| Rotation Speed | 65 rpm | 66 rpm | 48 rpm |
| Working Weight | 8.5 Kg | 7.5 Kg | 9.0 Kg |
| Shipping Weight | 16 Kg | 14 Kg | 16 Kg |
| Crate Dimensions | 650×500×190 mm | 650×500×190 mm | 650×500×190 mm |
Drive Options
The ID30 Pipe Beveling Machine is offered with three distinct drive system configurations, providing flexibility to meet diverse worksite conditions, power availability, and safety requirements. Each drive type is engineered for reliable, efficient performance in both field machining and workshop operations.
IDE30 - MT Electric Motor Drive
Powered by a 1.21 Hp / 0.9 kW industrial-grade MT electric motor, this configuration is designed for stable, long-duration operation in controlled environments such as fabrication shops. Operating on 220-240 V at 50/60 Hz, it delivers a consistent 65 rpm output speed for smooth, accurate beveling.
IDB30 - Bosh Electric Motor Drive
Equipped with a 1.34 Hp / 1.0 kW Bosh motor, this version combines durability with mechanical stability for demanding industrial use. Supporting the same voltage and frequency range as the MT drive, it runs at 48 rpm—optimized for heavy-duty beveling and continuous operation.
IDP30 - Pneumatic Motor Drive
Featuring a 1.34 Hp / 1.0 kW air motor, the pneumatic version is specifically designed for locations where electric power is unavailable or hazardous—such as offshore platforms, petrochemical facilities, and explosion-proof work zones. Operating at 1.3 m³/min @ 0.6 Mpa with a speed of 66 rpm, this pneumatic pipe beveling machine offers excellent portability, quick setup, and safe performance in high-risk environments.
Industries and Applications
Power Generation Industry
In thermal, nuclear, wind, and hydroelectric power plants, the pneumatic pipe beveling machine delivers precise weld end preparation for critical high-temperature and high-pressure pipework. Its portable, explosion-proof drive makes it ideal for turbine overhaul, heat exchanger fabrication, and system retrofits during planned outages.
Oil and Gas Industry
Engineered for the demanding conditions of both onshore and offshore oil and gas operations, this machine excels in refineries, offshore platforms, and subsea pipeline projects. The pneumatic drive is ATEX-compliant and safe for explosive zones, enabling cold cutting of carbon steel, stainless steel, and exotic alloys under harsh environmental conditions.
Chemical and Petrochemical Plants
Perfect for process piping systems that transport corrosive chemicals, solvents, or high-temperature fluids, the pneumatic pipe beveling machine ensures burr-free bevels and clean surfaces without heat-affected zones. This preserves material integrity and prevents microstructural changes that could compromise safety and longevity.
Pipeline Construction and Field Maintenance
Ideal for remote installation sites and emergency pipeline repairs, this portable machine provides spark-free, cold-cutting beveling—critical in fire-sensitive environments. Its rapid setup and reliable performance help maintain production schedules while ensuring strong, leak-proof joints on-site.
Mounting Range
| Jaw Blocks and Ramp Sets | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Toolbit Options
Frequently Asked Questions
Q1: What pipe sizes and materials can the pneumatic pipe beveling machine handle?
A: The pneumatic pipe beveling machine is designed for small to large diameter pipes made from carbon steel, stainless steel, and high-alloy materials. It provides consistent, burr-free beveling for a wide range of industrial applications.
Q2: Is the pneumatic pipe beveling machine safe for use in hazardous or explosive environments?
A: Yes. Its cold-cutting technology generates no sparks or heat, eliminating the need for hot work permits. The pneumatic drive is ATEX-compliant, making it ideal for explosive zones such as offshore platforms and petrochemical plants.
Q3: What drive options are available besides pneumatic?
A: While the pneumatic drive is preferred for hazardous areas, electric and hydraulic drive versions are also available to suit different site conditions and power availability.
Q4: Can the pneumatic pipe beveling machine produce different bevel profiles?
A: Yes. It supports standard bevels, compound bevels, J-preps, and facing operations, with quick tool changes to adapt to varying welding requirements.
Q5: How do I maintain a pneumatic pipe beveling machine for optimal performance?
A: Regularly clean the machine, lubricate moving components, and inspect cutting tools for wear. For pneumatic models, always use clean, dry compressed air to prevent internal corrosion and ensure smooth operation.
Pipe Beveler Selection Table
| Model | ID Mounting Range | Cutting Range (ID-OD) |
|---|---|---|
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
