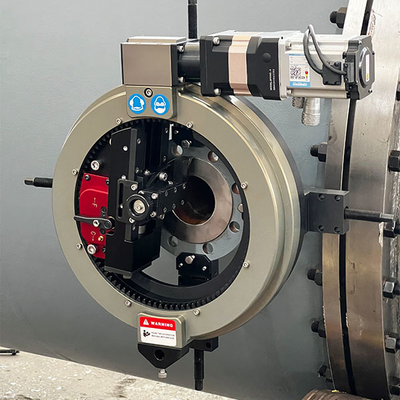

12 Inches ID Mount Flange Facer Small Diameter With Long Term Performance
| MOQ: | 1 |
| Price: | 4500USD-18000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
12 Inches ID Mount Flange Facer
,12 Inches flange facer machine
,Long Term ID Mount Flange Facer
FE12 ID Mount Flange Facer Restores Small-Diameter Branch Flanges in Pressure Vessel Manufacturing
CASE INTRODUCTION
A leading manufacturer in the pressure vessel industry, specializing in modified asphalt and rubber-modified asphalt production systems, encountered a recurring challenge during equipment fabrication and handling. These systems incorporate numerous small-diameter branch flanges that are highly vulnerable to dents, scratches, and surface damage during lifting, transportation, and manufacturing. Such defects compromise sealing integrity, increase the risk of leakage, and negatively impact overall operational efficiency.
To overcome this issue, the customer adopted the FE12 Flange Facing Machine from MT Portable Machine, enabling precise on-site machining. This solution not only restored the sealing surfaces to original standards but also enhanced production reliability, minimized downtime, and ensured long-term equipment performance.
TECHNIAL SPECIFICATIONS
| Item | FE12P (Pneumatic) | FE12E (Electric) |
|---|---|---|
| Model | FE12P Flange Facing Machine | FE12E Flange Facing Machine |
| Drive Type | Pneumatic Motor, 1.34 Hp / 1.0 kW | Panasonic Servo Motor, 1.34 Hp / 1.0 kW |
| Power Supply | 1.3 m³/min @ 0.6 MPa | 220–240V, 50/60 Hz |
| Facing Diameter | 0–12 inches (0–305 mm) | 0–12 inches (0–305 mm) |
| OD Mounting Range | 2–17.7 inches (50–450 mm) | 2–17.7 inches (50–450 mm) |
| Feed Speeds | 0.125 mm/rev & 0.5 mm/rev | 0.125 mm/rev & 0.5 mm/rev |
| Rotation Speed | 45 RPM | 45 RPM |
| Shipping Weight | 94.5 Kg | 138 Kg |
| Shipping Dimensions | 830×620×580 mm (Plastic Box) | 1160×600×510 mm (Steel Box) |
PERFORMANCE AND VALUE DELIVERED
The application of the FE12 Flange Facer delivered measurable benefits:
- Restored sealing surfaces of small flanges to industry standards.
- Increased efficiency with 20+ flanges repaired per shift.
- Minimized downtime by enabling on-site machining.
- Reduced maintenance costs compared to flange replacement.
- Ensured reliable sealing performance for asphalt production equipment.
The customer expressed high satisfaction with the FE12’s performance, praising its speed, precision, and suitability for high-volume small flange repair.
KEY INDUSTRY CHALLENGES SOLVED BY FE12
Flange surface damage
dents and scratches eliminated, restoring sealing integrity.
High repair workload
fast OD-mounting design supports efficient batch machining.
Production downtime
on-site machining minimizes equipment disassembly and downtime.
Small flange repair difficulty
specialized design ensures precision in compact spaces.
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
