High Accuracy Pipeline Beveling Machine Portable Pipe Beveling Machine 11.81"-24.80"
| MOQ: | 1 |
| Price: | 600USD-1800USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
High Accuracy Pipeline Beveling Machine
,24.80" Pipeline Beveling Machine
,24.80" Portable Pipe Beveling Machine
ID630 Pipe Beveling Machine - Heavy Duty ID Mounted Cold Cutting Tool for Weld Preparation
PRODUCT DESCRIPTION

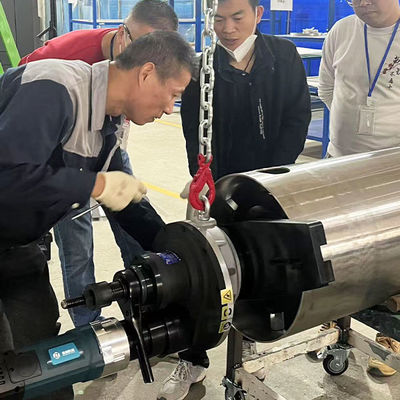

The ID630 Pipe Beveling Machine is a heavy-duty, internally mounted cold cutting tool engineered for precision weld preparation on large-diameter pipes. With a machining range from 11.81" to 24.80" (300–630 mm), this versatile machine supports beveling, facing, counterboring, and chamfering on-site or in-shop.
The ID630 features a cold cutting system that avoids thermal distortion and ensures clean, high-integrity bevels on carbon steel, stainless steel, and alloy materials. Its self-centering expanding mandrel allows fast, stable internal clamping. Multiple drive options (electric or pneumatic) support diverse worksite environments.This machine is widely used in pipeline construction, power generation, chemical processing, and shipbuilding, especially where high-precision, heat-free beveling is critical.
KEY FEATURES
Cold Cutting System
No heat-affected zones, eliminating thermal distortion for safer and cleaner welds.
Wide Material Compatibility
Suitable for carbon steel, stainless steel, and various alloy steels.
Versatile Machining Functions
Performs V/U bevels, facing, chamfering, and counterboring using interchangeable tools.
Fast Setup with Internal Clamping
Three-jaw self-centering mandrel ensures quick and reliable installation.
Adjustable Bevel Angles
Tool bits support angles from 0° to 45°; custom angles available on request.
SPECIFICATIONS
| Item | IDE-630 | IDP-630 |
| Drive Type | MT electric motor | Pneumatic motor |
| Motor Power | 220-240 V, 50/60 Hz | 2.8 m³/min @ 0.6 Mpa |
| Motor Power | 2.2 Kw (2.95 Hp) / 10 A | 2.76 Kw (3.75 Hp) |
| Cutting Range (ID-OD) | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
| ID Mounting Range | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
| Wall Thickness | ≤20 mm (0.79") | ≤20 mm (0.79") |
| Feed Stroke | 40 mm (1.57") | 40 mm (1.57") |
| Rotation Speed | 10 rpm | 10 rpm |
| Working Weight | 106.5 Kg | 107 Kg |
| Shipping Weight | 161 Kg | 160 Kg |
| Crate Dimensions | 1010x715x420 mm | 1010x715x420 mm |
DRIVE OPTIONS
Designed to suit different jobsite environments and operational needs, the ID630 Pipe Beveler comes with a choice of electric or pneumatic drive systems.
IDE630 – MT Electric Motor Drive
Equipped with a 2.95 HP (2.2 kW) electric motor, ideal for workshop environments with stable power supply. Offers consistent torque and precise speed control for long-duration cutting tasks.
IDP630 – Pneumatic Motor Drive
Powered by a 3.75 HP (2.76 kW) air motor. Explosion-proof and maintenance-friendly, this version is suitable for hazardous, remote, or offshore job sites.
INDUSTRIES AND APPLICATIONS
Power Generation Facilities
The ID630 pipe beveling machine is widely used in power generation plants for weld prep of steam lines, high-pressure piping, and turbine feed systems. Its ability to handle large-diameter and thick-wall pipes makes it essential in thermal and nuclear power plants, where precise, repeatable beveling is required for safety-critical systems.
Oil and Gas Pipelines and Refineries
This machine is ideal for field deployment in oil fields, offshore rigs, and pipeline construction projects. It ensures clean, burr-free bevels on transmission lines, risers, and manifold connections, supporting high-integrity weld joints even in remote or hazardous environments.
Petrochemical and Chemical Processing Plants
In chemical processing plants, where corrosion-resistant alloys like duplex and stainless steel are prevalent, the ID630 excels with its torque capacity and cutter versatility. It's frequently used for maintenance turnarounds, pipe system upgrades, and shutdown repairs.
Shipbuilding and Offshore Platforms
The compact, internally-mounted design of the ID630 allows it to operate in confined engine rooms, under-deck pipe systems, and offshore modules. It supports rapid, reliable weld preparation where downtime and space are limited.
MOUNTING RANGE
| Jaw Blocks and Ramp Sets | |
| Jaw block No. | ID Mounting Range |
|
None |
Φ300-330 mm (11.811" -12.992") |
|
NO.01 |
Φ330-360 mm (12.992"-14.173") |
|
NO.02 |
Φ360-390 mm (14.173"-15.354") |
|
NO.03 |
Φ390-420 mm (15.354"- 16.535") |
|
NO.04 |
Φ420-450 mm (16.535"-17.717") |
|
NO.05 |
Φ450-480 mm (17.717"-18.898") |
|
NO.06 |
Φ480-510 mm (18.898"-20.079") |
|
NO.07 |
Φ510-540 mm (20.079"-21.260") |
|
NO.08 |
Φ540-570 mm (21.260"-22.441") |
|
NO.09 |
Φ570-600 mm (22.441"-23.622") |
|
NO.10 |
Φ600-630 mm (23.622"-24.803") |
TOOLBIT OPTIONS
FREQUENTLY ASKED QUESTIONS
Q1: What is the machining range of the ID630 Pipe Beveling Machine?
A: The ID630 Pipe Beveling Machine has a machining range from 11.81" to 24.80" (300 mm – 630 mm), making it suitable for a variety of large-diameter pipe applications.
Q2: What materials can the ID630 handle?
A: The ID630 is designed for beveling, facing, counterboring, and chamfering on carbon steel, stainless steel, and various alloy steels, providing versatility for different industrial applications.
Q3: How does the cold cutting system benefit the ID630?
A: The cold cutting system prevents heat-affected zones, ensuring no thermal distortion and providing cleaner, higher-quality bevels for safer and more efficient welding, especially for high-precision applications.
Q4: What are the available drive options for the ID630?
A: The ID630 offers two drive options: the electric motor drive (IDE630) with 2.95 HP (2.2 kW) for stable, workshop-based operations, and the pneumatic motor drive (IDP630) with 3.75 HP (2.76 kW) for use in hazardous, remote, or offshore environments.
Q5: Can the ID630 be used in confined spaces?
A: Yes, the ID630's compact, internally mounted design makes it ideal for confined spaces such as engine rooms, under-deck pipe systems, and offshore modules, ensuring reliable and efficient weld preparation even in limited areas.
PIPE BEVELER SELECTION TABLE
| Model | ID Mounting Range | Cutting Range (ID-OD) |
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
