ID426 Industrial ID-Mounted Pipe Beveling Machine for Large Diameter Cold Cutting and Versatile Machining Profiles
| MOQ: | 1 |
| Price: | 550USD-1650USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
ID426
Voltage:
220-240 V,50/60 HZ
Wall Thickness:
≤ 20 MM (0.79")
Working Weight:
86.5kg,85kg
Dimension:
1010*515*420 MM
Highlight:
Large Diameter Pipe Beveling Machine
,Cold Cutting Pipe Beveler
,Versatile Machining ID-Mounted Beveling Machine
Product Description

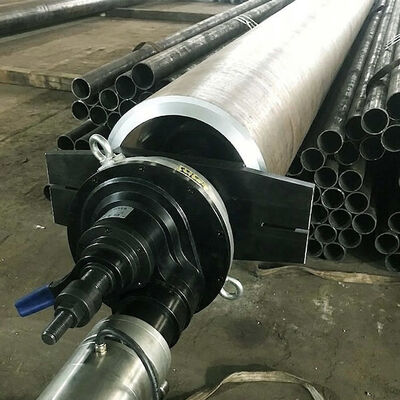

ID426 Industrial ID-Mounted Pipe Beveling Machine
Robust internally mounted solution for high-precision weld end preparation on heavy-wall piping with machining diameter of Φ250mm to 426mm (9.84" - 16.77"). Ideal for critical infrastructure projects including power generation, petrochemical processing, and large-scale industrial maintenance.
Key Features
- Thermal-Free Cold Cutting: 100% cold machining process prevents thermal distortion and preserves metallurgical integrity
- Versatile Machining Profiles: Handles V-grooves, U-grooves, J-bevels, internal counterboring, and flange facing
- Universal Material Compatibility: Processes stainless steel, carbon steel, and chrome-moly alloys
- Rapid Internal Alignment: Heavy-duty three-jaw expansion mandrel for rapid setup and stability
- Flexible Power Systems: Electric motor for shop use or pneumatic drive for hazardous environments
Specifications
| Item | IDE-426 | IDP-426 |
|---|---|---|
| Drive Type | MT electric motor | Pneumatic motor |
| Motor Power | 220-240 V, 50/60 Hz | 2.8 m³/min @ 0.6 Mpa |
| Motor Power | 2.2 Kw (2.95 Hp) /10 A | 2.76 Kw (3.75 Hp) |
| Cutting Range (ID-OD) | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID Mounting Range | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| Wall Thickness | ≤20 mm (0.79") | ≤20 mm (0.79") |
| Feed Stroke | 40 mm (1.57") | 40 mm (1.57") |
| Rotation Speed | 10 rpm | 12 rpm |
| Working Weight | 86.5 Kg | 85 Kg |
| Shipping Weight | 114 Kg | 113 Kg |
| Crate Dimensions | 1010x515x420 mm | 1010x515x420 mm |
Drive Options
IDE426 - MT Electric Motor Drive
Powered by 2.95 Hp (2.2 kW) MT electric motor at 220-240 V, 50/60 Hz. Ideal for workshops, fabrication yards, and power generation facilities with reliable electrical infrastructure. Ensures quiet, clean operation with minimal maintenance.
IDP426 - Pneumatic Motor Drive
Driven by 3.75 Hp (2.76 kW) pneumatic motor requiring 2.8 m³/min @ 0.6 MPa. ATEX-compliant for hazardous environments in oil & gas, petrochemical, and offshore settings. Spark-free operation enhances safety in flammable work areas.
Industries and Applications
Power Generation
Thermal, nuclear, and combined-cycle plants. High-pressure steam lines, superheater tubing, and feedwater systems. Ensures HAZ-free precision for critical welds.
Oil, Gas & Petrochemicals
Refinery shutdowns and routine maintenance. Reactor loops, flare lines, and process piping. Pneumatic drive provides spark-free safety for hazardous zones.
Heavy Fabrication & Spool Yards
High-volume production and structural pipe shops. Boiler manufacturing, pressure vessel nozzles, and pipe spooling. Self-centering mandrel for rapid setup.
Marine & Offshore Engineering
Shipboard and platform environments. Ballast systems, offshore risers, and confined-space engine room repairs. Lightweight and portable for hazardous offshore areas.
Mounting Range
| Jaw block No. | ID Mounting Range |
|---|---|
| None | Φ250-280 mm (9.843"-11.024") |
| NO.01 | Φ280-310 mm (11.024"-12.205") |
| NO.02 | Φ310-340 mm (12.205"-13.386") |
| NO.03 | Φ340-370 mm (13.386"-14.567") |
| NO.04 | Φ370-400 mm (14.567"-15.748") |
| NO.05 | Φ400-426 mm (15.748"-16.772") |
Toolbit Options
Why Choose the ID426?
Precision welding starts with perfect preparation. The ID426 eliminates inconsistencies of manual grinding, providing uniform land and bevel angle every time. Portable design essential for on-site pipe repair where accuracy and safety are non-negotiable.
Pipe Beveler Selection Table
| Model | ID Mounting Range | Cutting Range (ID-OD) |
|---|---|---|
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
