42–48 Inch Pipe Cutting and Beveling Machine – Cold Cutting Solution with Multiple Drive Options for Large Pipes
| MOQ: | 1 |
| Price: | 7500USD-22500USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD1230
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
1066–1230 Mm (42"–48")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Wall Thickness Handling Guide:
>30 Mm Needs Heavy Slide
Setup Convenience:
Fast Setup, Ideal For Large Field Jobs
Application Industries:
Refining, Petrochemical, Shipbuilding, Nuclear, Power, Etc.
Pneumatic Use Scenario:
Explosion-proof Zones; Air Source Must Be Close
Highlight:
42–48 Inch Pipe Cutting and Beveling Machine
,Cold Cutting Solution Pipe Cutting and Beveling Machine
,Multiple Drive Options Clamshell Pipe Beveling Machine
Product Description
42–48 Inch Pipe Cutting and Beveling Machine – Cold Cutting Solution for Large Pipes

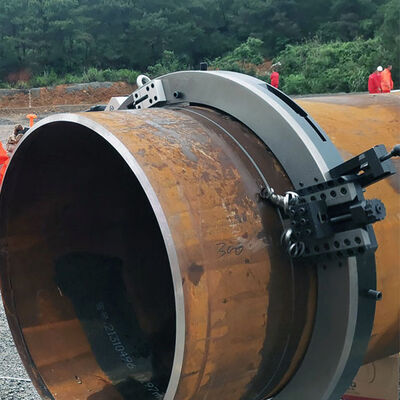

The OD1230 Pipe Cutting and Beveling Machine is the largest model in the series, designed for pipes ranging from 42 to 48 inches (1066-1230 mm). Its heavy-duty clamshell construction provides exceptional rigidity and stability, allowing safe, precise, and efficient operation even in challenging on-site environments.
This cold cutting system ensures heat-free, spark-free machining, producing consistent bevels and smooth facing to support high-integrity weld joints. Its versatility makes it suitable for a wide range of pipe materials, including carbon steel, stainless steel, and high-strength alloys.
Equipped with flexible drive options—hydraulic, pneumatic, or electric—the OD1230 can be adapted to varying site conditions and operational requirements. Designed for large-scale industrial pipelines, power plants, and petrochemical facilities, it combines precision, reliability, and durability, making it the ultimate solution for heavy-duty pipeline cutting and beveling projects.
Specifications
| Item | ODM1230 (Electric) | ODP1230 (Pneumatic) | ODH1230 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 1066-1230 mm (42"-48") | 1066-1230 mm (42"-48") | 1066-1230 mm (42"-48") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD1230 Pipe Cutting and Beveling Machine?
- Maximum Pipe Range: Processes pipes up to 1230 mm OD, covering the largest industry needs.
- Unmatched Cutting Precision: Delivers highly accurate machining for superior weld performance.
- Versatile Across Industries: Widely used in oil & gas, shipbuilding, power generation, and heavy construction.
- Customizable Tooling: Supports a variety of tool inserts for beveling, facing, and chamfering.
- Durable and Efficient: Built for continuous operation under extreme working environments.
Selection Guide
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
- AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
- OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
- ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
- ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
- ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide. For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD1230 Pipe Cutting and Beveling Machine Application Industries
Designed for extra-large oil and gas transmission lines, OD1230 guarantees precise weld prep. In nuclear fusion research facilities, it meets extreme accuracy standards. Heavy shipbuilding requires its capability for massive pipelines. Refineries and petrochemical plants use it for critical pipeline shutdowns. In industrial power stations, it handles thick-wall pipes efficiently, solving the challenge of field machining under heavy-duty conditions.
Exhibition Photos
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
