36–42 Inch Portable Pipe Cutting and Beveling Machine with Multiple Drive Options – Cold Cutting System
| MOQ: | 1 |
| Price: | 6500USD-19500USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD1066
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
914–1066 Mm (36"–42")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Locator Pads:
8
Material Compatibility:
Stainless Steel, Alloy Steels
Highlight:
36–42 Inch Pipe Cutting and Beveling Machine
,Portable Cold Cutting System
,Multiple Drive Options Clamshell Pipe Beveling Machine
Product Description
36–42 Inch Pipe Cutting and Beveling Machine – Portable Cold Cutting System

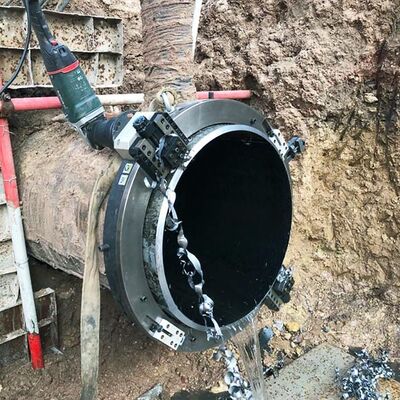

The OD1066 Pipe Cutting and Beveling Machine is a heavy-duty cold cutting system designed for large-diameter pipes ranging from 36 to 42 inches (914-1066 mm). Its reinforced clamshell frame provides maximum stability and rigidity, ensuring precise and reliable machining even in challenging field environments.
This portable cold cutting solution delivers accurate, heat-free bevels and smooth facing, reducing the risk of material distortion or hardening and improving weld quality. Its versatile tooling supports beveling, facing, counterboring, and chamfering, allowing operators to complete multiple tasks efficiently in a single setup.
Ideal for demanding applications such as subsea pipelines, thermal power plants, and petrochemical facilities, the OD1066 offers flexible operation with pneumatic, hydraulic, or electric drive options. Quick installation, modular design, and portability make it a trusted choice for projects that require high productivity, precision, and operator safety.
Specifications
| Item | ODM1066 (Electric) | ODP1066 (Pneumatic) | ODH1066 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 914-1066 mm (36"-42") | 914-1066 mm (36"-42") | 914-1066 mm (36"-42") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD1066 Pipe Cutting and Beveling Machine?
Professional Weld Prep
Produces precise and smooth cuts to ensure long-lasting weld joints.
Produces precise and smooth cuts to ensure long-lasting weld joints.
High Strength Build
Designed with durable materials for long-term industrial service.
Designed with durable materials for long-term industrial service.
Wide Pipe Capability
Accommodates pipe sizes up to 1066 mm OD in oil, gas, and power projects.
Accommodates pipe sizes up to 1066 mm OD in oil, gas, and power projects.
Quick Installation
The clamshell system allows rapid setup, reducing downtime.
The clamshell system allows rapid setup, reducing downtime.
Safe and Clean Cutting
Cold cutting eliminates risks from sparks and high temperatures.
Cold cutting eliminates risks from sparks and high temperatures.
Selection Guide
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide.
For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
For wall thickness ≤30 mm, use the standard tool slide.
For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Application Industries
The OD1066 pipe cutting and beveling machine is designed for demanding large-diameter pipeline projects. It is widely used in gas transmission systems to achieve precise weld preparation, and in power generation plants to handle thick-walled piping with efficiency. Offshore platforms and shipyards rely on it for heavy-duty pipe joints in challenging environments. In the chemical and metallurgical sectors, it provides reliable machining of stainless steel and alloy materials, ensuring consistent quality in critical applications.
Exhibition Photos
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
