30–36 Inch Industrial Grade Pipe Cutting and Beveling Machine for Large Pipe Machining
| MOQ: | 1 |
| Price: | 3500USD-10500USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD914
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
762–914 Mm (30"–36")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Locator Pads:
8
High Power Demand Suitability:
Hydraulic Drive Recommended (OD830 And Above)
Highlight:
30–36 Inch Pipe Cutting and Beveling Machine
,Industrial Grade Tube Cutting and Chamfering Machine
,Large Pipe Machining Cold Cutting Machine
Product Description
OD914 Pipe Cutting and Beveling Machine (30-36 Inch)
Industrial-grade cold cutting solution for large-diameter pipes ranging from 30 to 36 inches (762-914 mm). Featuring a robust split-frame design, this machine provides stability and precision for heavy-duty pipeline fabrication, maintenance, and industrial projects.
Technical Specifications
| Item | ODM914 (Electric) | ODP914 (Pneumatic) | ODH914 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 762-914 mm (30"-36") | 762-914 mm (30"-36") | 762-914 mm (30"-36") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD914 Pipe Cutting and Beveling Machine?
- Industrial-Grade Cutting: Provides accurate cold cutting and beveling for heavy-duty pipelines
- Exceptional Material Range: Performs on carbon steel, stainless steel, and specialty alloys
- Large Pipe Machining: Supports pipe diameters up to 914 mm OD, suitable for infrastructure projects
- Advanced Tool Options: Allows V, J, facing, and chamfering for diverse project requirements
- Reliable Motor Options: Choose from pneumatic, hydraulic, or electric drives for maximum adaptability
Selection Guide
Follow these guidelines or provide your specific requirements for professional model selection advice.
1. Choose the Clamshell Material
The OD series features a main body ring and rotating gear ring. The gear ring is heat-treated alloy steel, while the main body ring can be aluminum or steel. AOD model (Aluminum) is recommended for on-site machining without lifting equipment. OD model (Steel) offers higher strength and longer service life for heavy-duty applications.
2. Choose the Drive Type
ODM (Electric): Suitable for most applications with 220V-50Hz power. ODP (Pneumatic): For explosion-proof sites. ODH (Hydraulic): Recommended for OD830 and above models for greater power.
3. Confirm Pipe Wall Thickness
Standard tool slide for ≤30 mm wall thickness. Heavy wall tool slide for >30 mm wall thickness.
4. Confirm Bevel Angle and Type
Required for selecting appropriate toolbits (V-type, J-type, or compound bevels).
5. Confirm Pipe Material and Quantity
Necessary to determine proper toolbits and quantities required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Application Industries

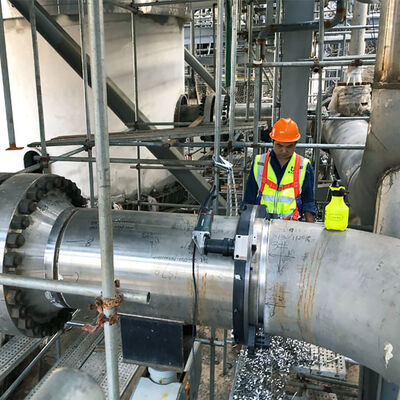

The OD914 pipe cutting and beveling machine is widely applied in large-diameter oil and gas pipelines, ensuring precise cold cutting and beveling without pipe deformation. In nuclear power plants, it supports high-standard weld preparation under strict safety regulations. Shipyard and offshore engineering teams use it for processing oversized pipe joints in harsh environments. It is also suitable for chemical and petrochemical industries, delivering reliable performance when machining corrosion-resistant alloys.
Exhibition Photos
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
