22–28 Inch Pipe Cutting and Beveling Machine with Reinforced Split-Frame Clamshell Design and Multiple Drive Options for Industrial Cold Cutting
| MOQ: | 1 |
| Price: | 2700USD-8100USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD715
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
560–715 Mm (22"–28")
Material:
Steel Body And Aluminum Body
Application Scenarios:
Emergency Repair, Scheduled Maintenance, Boiler Work
Feed Rate:
0.083 Mm/rev
Highlight:
560–715 mm Pipe Cutting and Beveling Machine
,Multiple Drive Options Clamshell Pipe Beveling Machine
,Reinforced Split-Frame Cold Cutting Pipe Machine
Product Description
OD715 Pipe Cutting and Beveling Machine – Industrial Cold Cutting Solution
The OD715 Pipe Cutting and Beveling Machine is a heavy-duty industrial cold cutting system designed for pipes with an outer diameter range of 22 to 28 inches (560-715 mm). Developed for demanding field conditions, the machine delivers precise cutting and consistent bevel profiles while maintaining ease of operation for on-site technicians.

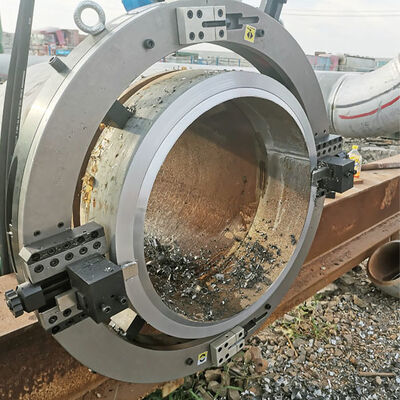

Featuring a reinforced split-frame clamshell design, the OD715 can be quickly mounted around in-service pipelines, allowing machining to be performed without dismantling surrounding pipe sections. This makes it highly effective for emergency repairs, turnaround maintenance, and large-scale industrial projects where downtime must be minimized.
The OD715 is capable of machining high-strength alloy steels and stainless steel pipes commonly used in petrochemical plants, power generation facilities, and heavy industrial installations. Supporting a wide range of machining functions—including V and J beveling, compound bevels, facing, and chamfering—the machine offers excellent flexibility for complex weld preparations. With pneumatic, hydraulic, and electric drive options available, the OD715 adapts easily to different site conditions, delivering reliable performance where productivity and safety are critical.
Technical Specifications
| Item | ODM715 (Electric) | ODP715 (Pneumatic) | ODH715 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 560-715 mm (22"-28") | 560-715 mm (22"-28") | 560-715 mm (22"-28") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD715 Pipe Cutting and Beveling Machine?
- Superior Weld Finish: Guarantees smooth bevel edges, reducing rework and welding defects
- Wide Pipe Application: Handles pipe diameters up to 715 mm OD, making it suitable for oil and gas networks
- Compact and Portable: Despite its size, the OD715 maintains excellent portability for on-site machining
- Flexible Tool Configurations: Supports facing, boring, and beveling with multiple insert options
- Adapted for Safety: Cold cutting minimizes fire hazards, ensuring safe use in flammable environments
Selection Guide
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide.
For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Clamshell Pipe Cutting and Beveling Machines in the Boiler Industry
Clamshell pipe cutting and beveling machines are widely used in the boiler industry for precise pipe preparation. Their split-frame design allows easy mounting on large-diameter boiler pipes, enabling accurate cold cutting and beveling without heat damage. This ensures high-quality welds, maintains pipe integrity, and reduces downtime during maintenance or installation. Compact and portable, clamshell machines streamline boiler construction and repair, improving efficiency and safety in confined or elevated work areas.
Exhibition Photos
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
