20–26 Inch Pipe Cutting and Beveling Machine with Cold Cutting Technology and Split-Frame Clamshell Design
| MOQ: | 1 |
| Price: | 2600USD-7800USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD660
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
500–660 Mm (20"–26")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Locator Pads:
4
Heavy Wall Thickness:
Up To 200 Mm
Highlight:
20–26 Inch Pipe Cutting and Beveling Machine
,Cold Cutting Technology Pipe Cutting and Beveling Machine
,Split-Frame Clamshell Pipe Beveling Machine
Product Description

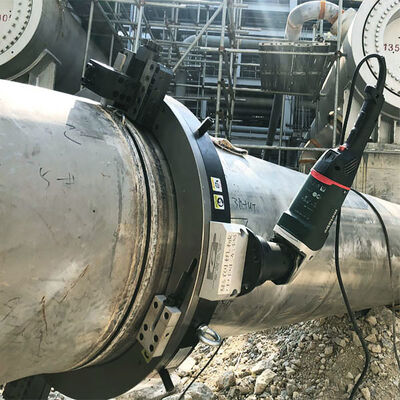

OD660 Pipe Cutting and Beveling Machine – On-Site Cold Cutting Solution
The OD660 Pipe Cutting and Beveling Machine is a professional on-site cold cutting system designed for pipes with an outer diameter range of 20 to 26 inches (500-660 mm). Its optimized split-frame clamshell construction combines reduced weight with high structural strength, allowing the machine to be easily transported and securely mounted around the pipe.
Built for precision weld preparation, the OD660 delivers clean cuts and accurate bevel profiles without generating sparks or excessive heat. This makes it especially suitable for safety-critical environments such as power generation facilities, chemical refineries, and offshore installations, where reliable cold machining is essential.
The machine supports multiple machining operations, including beveling, facing, chamfering, and counterboring, enabling efficient joint preparation in a single setup. Designed for both horizontal and vertical pipe orientations, the OD660 minimizes downtime by offering fast installation and stable operation even under challenging site conditions. Its broad compatibility with carbon steel, stainless steel, and alloy steel pipes makes it a versatile solution for industrial pipeline maintenance and fabrication work.
Specifications
| Item | ODM660 (Electric) | ODP660 (Pneumatic) | ODH660 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 500-660 mm (20"-26") | 500-660 mm (20"-26") | 500-660 mm (20"-26") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD660 Pipe Cutting and Beveling Machine?
- Cold Cutting Advantage: Prevents material hardening, offering clean cuts and improved weld quality.
- Heavy-Duty Performance: Engineered to process larger pipes up to 660 mm OD in construction and refinery sectors.
- User-Friendly Setup: Split clamshell design ensures simple mounting without dismantling adjacent structures.
- Long Tool Life: Optimized cutting tools extend operating time and reduce replacement frequency.
- Reliable in Harsh Conditions: Performs efficiently in offshore, petrochemical, and pipeline maintenance projects.
Selection Guide
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide. For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD660 Pipe Cutting and Beveling Machine Application Industries
Deployed in oil transmission lines, the OD660 enables safe cutting under hazardous conditions. Hydropower stations use it for turbine pipe maintenance. In ship repair docks, it delivers smooth weld prep in confined areas. Pharmaceutical plants require precise bevels on stainless steel pipes. It also serves urban infrastructure projects, providing reliable solutions where on-site welding preparation is challenging.
