18–24 Inch Pipe Cutting and Beveling Machine with Multiple Drive Options and Cold Cutting Technology
| MOQ: | 1 |
| Price: | 2200USD-6600USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD610
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
457-610 Mm (18"–24")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Locator Pads:
4
Material Compatibility:
Carbon Steel, Stainless Steel, Exotic Alloys
Highlight:
18–24 Inch Pipe Cutting and Beveling Machine
,Multiple Drive Options Cold Cutting Machine
,Cold Cutting Technology Clamshell Pipe Beveling Machine
Product Description
18–24 Inch Pipe Cutting and Beveling Machine – Cold Cutting Solution for Industrial Pipes

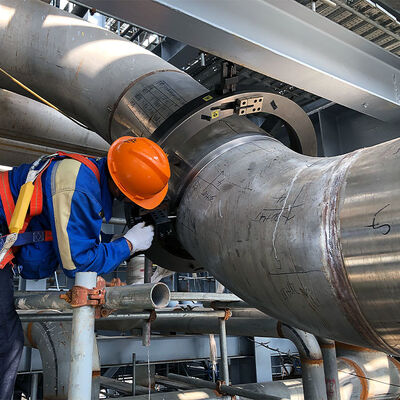

The OD610 Pipe Cutting and Beveling Machine is a heavy-duty cold cutting system developed for industrial pipes with an outer diameter range of 18 to 24 inches (457-610 mm). Featuring a reinforced split-frame clamshell structure, the machine mounts securely around the pipe to ensure stable, vibration-free operation during cutting and beveling.
Designed for critical pipeline work, the OD610 is widely used in pipeline construction, repair projects, and plant shutdown maintenance, where operational safety and machining accuracy are essential. Its cold cutting process eliminates sparks and heat-affected zones, making it suitable for high-risk environments and helping preserve the original material properties of the pipe.
Equipped with robust tool slides and interchangeable cutting and beveling inserts, the OD610 supports multiple machining functions, including facing, beveling, and boring. To adapt to different site conditions and power availability, the machine can be configured with hydraulic, pneumatic, or electric drive systems. Combining strength, precision, and flexibility, the OD610 is a reliable solution for a wide range of industrial pipe machining applications.
Specifications
| Item | ODM610 (Electric) | ODP610 (Pneumatic) | ODH610 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 457-610 mm (18"-24") | 457-610 mm (18"-24") | 457-610 mm (18"-24") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD610 Pipe Cutting and Beveling Machine?
- High Cutting Accuracy: Delivers precise machining for weld-prep bevels, ensuring perfect alignment during pipeline construction.
- Material Versatility: Compatible with carbon steel, stainless steel, and exotic alloys for industrial applications.
- Optimized for On-Site Work: Lightweight yet strong design ensures portability without sacrificing cutting power.
- Multiple Accessories: Supports V, J, and custom bevel angles through interchangeable tool kits.
- Drive Flexibility: Can be powered by pneumatic, hydraulic, or electric drives to suit different field conditions.
Selection Guide
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide. For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD610 Pipe Cutting and Beveling Machine Application Industries
This model is ideal for natural gas pipeline networks, ensuring reliable weld joints. In nuclear power construction, it delivers precision bevels meeting strict standards. Marine engineering yards use it for thick flange facing and pipe edge machining. In fertilizer plants, it improves shutdown efficiency with quick beveling. Heavy machinery factories benefit from its portability and ability to solve large pipe machining difficulties.
Exhibition Photos
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
