16–22 Inch Heavy-Duty Pipe Cutting and Beveling Machine with Explosion-proof Cold Cutting Technology
| MOQ: | 1 |
| Price: | 2150USD-6450USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD560
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
400–560 Mm (16"–22")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Locator Pads:
4
Safety:
Explosion-proof Environment Friendly
Highlight:
16–22 Inch Pipe Cutting and Beveling Machine
,Heavy-Duty Cold Cutting Machine
,Explosion-proof Clamshell Pipe Beveling Machine
Product Description
OD560 Pipe Cutting and Beveling Machine (16-22 Inch) - Heavy-Duty Cold Cutting Solution

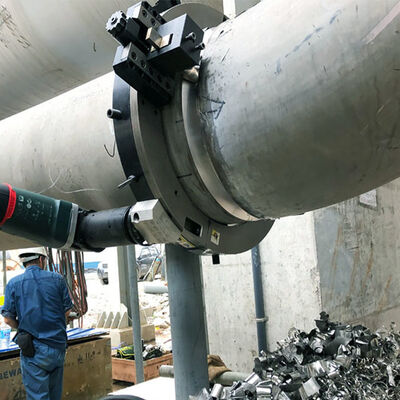

The OD560 Pipe Cutting and Beveling Machine is a robust cold cutting system designed for pipes with an outer diameter range of 16 to 22 inches (400-560 mm). Built for demanding field operations, its split-frame clamshell design enables the machine to be securely installed around the pipe, even when surrounding structures cannot be removed.
Optimized for precision machining, the OD560 delivers clean pipe cuts and accurate bevel profiles without generating sparks or excessive heat. This cold cutting process helps preserve the material properties of carbon steel, stainless steel, and alloy steel pipes, ensuring reliable weld preparation and consistent results across a wide range of applications.
The machine supports multiple machining functions, including V and J beveling, compound bevels, facing, and counterboring, making it suitable for complex joint preparations. With pneumatic, hydraulic, and electric drive options available, the OD560 adapts easily to different site conditions. Its combination of portability, strength, and versatility makes it a dependable solution for refineries, offshore platforms, and industrial fabrication projects where productivity and weld quality are critical.
SPECIFICATIONS
| Item | ODM560 (Electric) | ODP560 (Pneumatic) | ODH560 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 400-560 mm (16"-22") | 400-560 mm (16"-22") | 400-560 mm (16"-22") |
| Wall Thickness | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm |
| Wall Thickness | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
PRODUCT ADVANTAGES
Why Choose the OD560 Pipe Cutting and Beveling Machine?
- Efficient Weld Preparation: OD560 delivers smooth pipe ends for high-quality weld joints, increasing reliability in demanding conditions.
- Durable Structure: Built with robust materials for long-term operation in oil, gas, and power plant maintenance.
- Large Pipe Compatibility: Accommodates pipes up to 560 mm OD, meeting requirements of medium and large-scale projects.
- Enhanced Clamshell Design: The split-frame body allows quick installation and removal, even on pipelines in service.
- Safe Operation: Reduces risk by eliminating sparks and flames during cutting, making it suitable for hazardous environments.
SELECTION GUIDE
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide. For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
PIPE CUTTING AND BEVELING MACHINE SELECTION TABLE
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD560 PIPE CUTTING AND BEVELING MACHINE APPLICATION INDUSTRIES
Applied in oil refinery shutdowns, the OD560 delivers fast cold cutting on heavy pipes. In offshore drilling platforms, it provides safe, spark-free pipe processing. Thermal power stations use it for large-diameter pipe maintenance. It supports chemical storage facilities with leak-proof welding preparation. In steel plants, it handles demanding pipeline repair, overcoming issues of limited access during on-site machining.
EXHIBITION PHOTOS
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
