14–20 Inch Pipe Cutting and Beveling Machine with Pneumatic Electric Hydraulic Drive Options and Cold Cutting Technology
| MOQ: | 1 |
| Price: | 2050USD-6150USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
14–20 Inch Pipe Cutting and Beveling Machine
,Pneumatic Electric Hydraulic Drive Options Portable Cold Cutting Tool
,Cold Cutting Technology Clamshell Pipe Beveling Machine

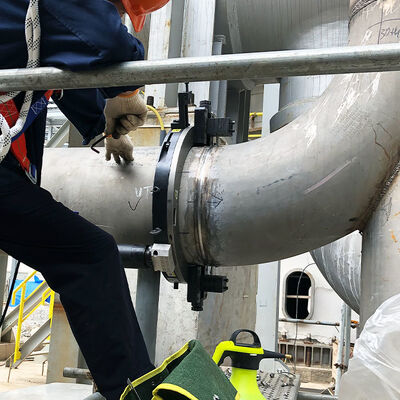

The OD508 Pipe Cutting and Beveling Machine is a portable cold cutting solution developed for pipes with an outer diameter range of 14 to 20 inches (355-508 mm). Featuring a rugged split-frame clamshell design, the machine can be mounted directly around the pipe, allowing fast setup and stable operation even in restricted or hard-to-access locations.
By utilizing cold cutting technology, the OD508 produces clean, accurate cuts and uniform bevels without generating sparks or heat-affected zones. This ensures excellent weld preparation while preserving the mechanical properties of the pipe material. The machine is well suited for both on-site maintenance and fabrication work, particularly during plant shutdowns and pipeline repairs.
To meet diverse job site requirements, the OD508 is available with pneumatic, electric, or hydraulic drive options. Its robust construction, combined with modular portability, makes it a reliable tool for oil and gas pipelines, power generation facilities, and chemical processing plants, where precision, safety, and operational efficiency are critical.
| Item | ODM508 (Electric) | ODP508 (Pneumatic) | ODH508 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 355-508 mm (14"-20") | 355-508 mm (14"-20") | 355-508 mm (14"-20") |
| Wall Thickness (Standard) | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm | Standard tool slide: ≤30 mm |
| Wall Thickness (Heavy Wall) | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
- Precision Cold Cutting: The OD508 ensures distortion-free weld preparation by eliminating heat-affected zones through cold cutting technology.
- Versatile Material Support: Handles carbon steel, stainless steel, and alloy steel pipes with consistent cutting performance in industrial projects.
- Expanded Pipe Range: Designed for pipe sizes from 20 to 508 mm OD, providing a flexible solution for mid-range pipelines.
- Tooling Flexibility: Equipped with multiple tool bits to perform beveling, facing, boring, and chamfering with ease.
- Adaptable Drive Options: Available with electric, pneumatic, and hydraulic motors to fit different worksite requirements.
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
For wall thickness ≤30 mm, use the standard tool slide.
For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Widely used in oil and gas pipeline projects, this machine ensures safe and precise weld prep without thermal damage. In power generation plants, it handles thick-wall pipe beveling efficiently. Petrochemical facilities rely on it for corrosion-resistant alloy pipes. In shipyard maintenance, it provides high-accuracy joint preparation. Also effective for construction piping systems, solving space-limited field machining challenges.
