10"-16" Pipe Cutting And Beveling Machine with Cold Cutting Technology and Clamshell Design
| MOQ: | 1 |
| Price: | 1750USD-5250USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
Detail Information
Place of Origin
Wuxi, China
Brand Name
MT Portable Machine
Certification
ISO9001 & CE
Model Number
OD426
Document
Drive Type:
Metabo Electric Motor Or Pneumatic Motor Or Hydraulic Motor
Working Range (OD):
273–426 Mm (10"–16")
Material:
Steel Body And Aluminum Body
Toolbit:
HSS
Tool Slide:
3"
Locator Pads:
4
Feed Rate:
0.083 Mm/rev
Highlight:
10"-16" Pipe Cutting And Beveling Machine
,Cold Cutting Technology Pipe Beveling Machine
,Clamshell Design Cold Cutting Machine
Product Description
OD426 Pipe Cutting and Beveling Machine (10-16 Inch) - Cold Cutting Clamshell Type

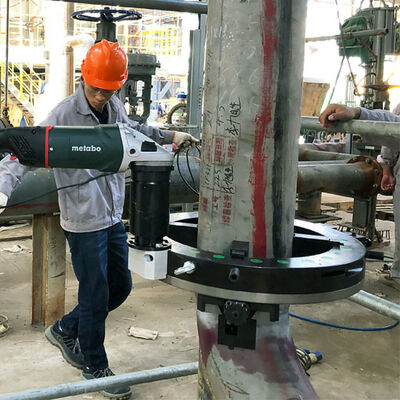

The OD426 Pipe Cutting and Beveling Machine is a heavy-duty cold cutting solution engineered for pipelines with an outer diameter range of 10 to 16 inches. Its split-frame clamshell structure allows the machine to be securely installed around existing pipes, enabling precise cutting and beveling without pipe rotation or disassembly.
Designed for demanding industrial environments, the OD426 is extensively applied in oil and gas pipelines, petrochemical processing plants, power generation facilities, and shipbuilding operations, where precision weld preparation and operational safety are critical. The cold cutting process prevents thermal stress, sparks, and metallurgical changes, helping maintain material strength and dimensional accuracy.
To accommodate various job site conditions, the OD426 is available with pneumatic, hydraulic, and electric drive systems. Its compact modular design supports efficient operation in confined spaces, elevated locations, and on-site maintenance projects. Combining safety, accuracy, and flexibility, the OD426 is a dependable choice for pipeline shutdowns, repairs, and fabrication work.
Specifications
| Item | ODM426 (Electric) | ODP426 (Pneumatic) | ODH426 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 273-426 mm (10"-16") | 273-426 mm (10"-16") | 273-426 mm (10"-16") |
| Wall Thickness (Standard) | ≤30 mm | ≤30 mm | ≤30 mm |
| Wall Thickness (Heavy Wall) | 200 mm | 200 mm | 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
Product Advantages
Why Choose the OD426 Pipe Cutting and Beveling Machine?
- Spark-Free and Safe Machining: Cold cutting technology eliminates open flames and heat-affected zones, making the OD426 suitable for hazardous and explosive environments such as refineries and offshore platforms.
- Rapid Clamshell Mounting: The split-frame design enables fast installation directly on the pipe, significantly reducing setup time and minimizing production downtime during maintenance or turnaround projects.
- Balanced Portability and Strength: Available in lightweight aluminum or heavy-duty steel configurations, the OD426 offers easy handling for fieldwork while maintaining structural rigidity for high-load cutting tasks.
- High-Quality Bevel Preparation: Precision cutting and consistent bevel geometry improve weld fit-up quality, helping reduce defects and extend pipeline service life.
- Highly Adaptable Configuration: With a wide range of tool bits, accessories, and drive options, the OD426 can be customized to meet specific project requirements across multiple industries.
Model Designation
Pipe Cutting and Beveling Machine Selection Table
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
|---|---|---|---|
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
| OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
Pipe Beveling Machine in Oil and Gas Industry
In the oil and gas industry, pipeline integrity is critical for safe and continuous operations. A pipe cutting and beveling machine ensures precise cold cutting and accurate bevel preparation for high-pressure pipelines, offshore platforms, and refinery shutdowns. Unlike flame cutting, the cold cutting process eliminates sparks, heat damage, and distortion, making it safe for hazardous environments. Its portable clamshell design allows on-site installation without disassembling the pipeline, reducing downtime and maintenance costs. Whether for new pipeline construction, emergency repair, or scheduled shutdown projects, the machine delivers efficiency, reliability, and weld quality that meet strict oilfield standards.
Frequently Asked Questions (FAQ) - OD Pipe Cutting and Beveling Machine
Q1: What are the advantages of using a clamshell pipe cutting and beveling machine?
A: The clamshell design allows the frame to split into two halves, enabling quick installation around in-service pipelines without dismantling. This makes it efficient for field maintenance and shutdown projects.
Q2: Which industries benefit most from pipe cutting and beveling machines?
A: These machines are widely used in oil and gas, petrochemical, power generation, shipbuilding, and offshore engineering. They ensure precise weld preparation and maintain pipeline integrity in critical applications.
Q3: How does cold cutting improve safety compared to flame cutting?
A: Cold cutting produces no sparks, heat, or distortion, reducing the risk of fire or explosion in hazardous environments. It also prevents material hardening, ensuring cleaner and safer welds.
Q4: Can one machine handle different pipe diameters and materials?
A: Yes. With interchangeable tool bits and multiple model sizes, the machine can process carbon steel, stainless steel, and alloy steel pipes across a wide range of diameters.
