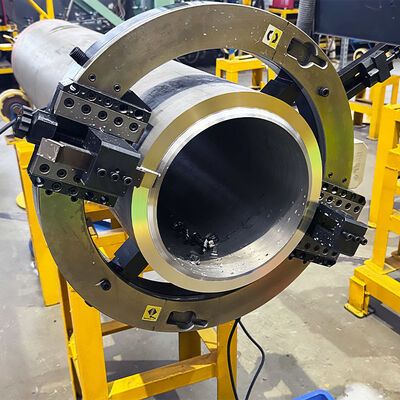

OD457 Pipe Cutting and Beveling Machine (12"–18") – Industrial Cold Cutting System
| MOQ: | 1 |
| Price: | 1900USD-5700USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
industrial pipe cutting machine
,cold cutting beveling system
,12-18 inch pipe beveler
OD457 Pipe Cutting and Beveling Machine (12"–18") – Industrial Cold Cutting System
The OD457 Pipe Cutting and Beveling Machine is a high-performance cold cutting system engineered for 12 to 18 inch (300–457 mm) industrial pipelines. Designed with a durable clamshell split-frame structure, the machine mounts directly around in-service pipes, enabling fast setup, stable operation, and precise machining without producing heat-affected zones.
With its ability to perform cold cutting, beveling, counterboring, and flange facing, the OD457 is widely used in oil & gas pipeline maintenance, petrochemical shutdowns, power plant construction, shipbuilding, and on-site fabrication. Its cold-cutting process eliminates sparks, heat, and material deformation, making it ideal for hazardous or confined environments.
The OD457 supports pneumatic, hydraulic, and electric drive systems, allowing operators to select the most suitable power option according to field conditions. Its compact structure, portability, and high-rigidity bearings ensure smooth cutting on standard and heavy-wall pipes.
Engineered for precision, safety, and reliability, the OD457 is a preferred solution for industrial weld preparation, pipeline repair, and high-accuracy cutting tasks across demanding industries.
SPECIFICATIONS
| Item | ODM457 (Electric) | ODP457 (Pneumatic) | ODH457 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 300–457 mm (12"–18") | 300–457 mm (12"–18") | 300–457 mm (12"–18") |
| Wall Thickness | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm |
| Wall Thickness | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
PRODUCT ADVANTAGES
Why Choose the OD457 Pipe Cutting and Beveling Machine?
1.High-Precision Industrial Cold Cutting
- No heat-affected zones
- No sparks or material hardening
- Ideal for hazardous environments such as offshore platforms and refineries
2.Multi-Function Cutting and Beveling
Supports:
- Straight cutting
- V bevels
- J bevels
- Facing and counterboring
- Perfect for welding preparation in high-standard industries.
3. Easy and Fast Clamshell Mounting
- Split-frame opens around the pipe
- No need to remove existing pipelines
- Reduces downtime during maintenance
4. Multiple Drive Options
- Pneumatic for explosive or hazardous zones
- Hydraulic for heavy-wall cutting
- Electric for indoor or workshop cutting
5. Safe, Efficient, and Portable
- Compact and lightweight body
- Suitable for elevated, narrow, or confined spaces
- Ensures consistent cutting accuracy and long tool life
MODEL DESIGNATION
PIPE CUTTING AND BEVELING MACHINE SELECTION TABLE
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
|
OD-508 |
355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
APPLICATION INDUSTRIES
Clamshell Pipe Cutting and Beveling Machines for the Boiler and Power Industry
Clamshell split-frame machines such as the OD457 are widely used in boiler fabrication, power plant piping, and pressure vessel maintenance. Their cold-cutting capability prevents heat damage, ensuring structural integrity during welding.
Thanks to their split-frame design, operators can mount the machine on large-diameter pipes without removing nearby structures. This significantly reduces downtime during outage work and enhances operational safety in elevated or confined areas.
The OD457 delivers:
- High-accuracy weld prep
- Consistent bevel geometry
- Safe operation in high-temperature or restricted environments
Common applications:
- Boiler tube replacement
- High-pressure steam line cutting
- Heat exchanger maintenance
- Industrial shutdown and turnaround operations
Frequently Asked Questions (FAQ) – OD Pipe Cutting and Beveling Machine
Q1: What are the benefits of a clamshell pipe cutting and beveling machine?
A: Its split-frame design allows quick installation around in-service pipes without disassembly, making it ideal for field maintenance, shutdowns, and pipeline repair projects.
Q2: Which industries rely on cold cutting and beveling machines?
A: Oil & gas, petrochemical plants, power generation, shipbuilding, boiler manufacturing, and offshore engineering.
Q3: Why is cold cutting safer than flame cutting?
A: Cold cutting generates no heat, sparks, or distortion, reducing fire and explosion risks while ensuring excellent weld preparation.
Q4: Can one machine process multiple pipe materials?
A: Yes. With appropriate tool bits, the OD457 can cut carbon steel, stainless steel, alloy steel, and other industrial metals.
