30 Inch Pneumatic Cold Cutting Machine Convenient High Performance
| MOQ: | 1 |
| Price: | 2850USD-8550USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
30 Inch Pneumatic Cold Cutting Machine
,30 Inch clamshell cutting machine
,High Performance Pneumatic Cold Cutting Machine
Split Frame Pipe Cutting Machine OD762 for Industrial Cold Cutting and Beveling
OD-762 Split Frame Pipe Cutting Machine
The OD-762 split frame pipe cutting machine works with pipes between 560 mm and 762 mm. Designed with reinforced clamshell construction, it ensures rigid clamping and smooth machining in heavy-duty environments. Cold cutting provides distortion-free performance across various materials, including carbon steel, stainless steel, and exotic alloys. The OD-762 is widely used in shipyard repairs, oil and gas transmission, chemical plants, and nuclear maintenance. Operators can perform cutting, beveling, weld removal, and flange resurfacing with accuracy. Its portable structure and robust drive system make it suitable for long-term field operations and high-precision industrial applications.
SPECIFICATIONS
| Item | ODM762 (Electric) | ODP762 (Pneumatic) | ODH762 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 600–762 mm (24"–30") | 600–762 mm (24"–30") | 600–762 mm (24"–30") |
| Wall Thickness | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm |
| Wall Thickness | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
KEY FEATURES
Cold Cutting Technology
By avoiding thermal cutting methods, the OD762 preserves pipe metallurgical properties and creates perfect end preparations for high-integrity welding in petrochemical applications.
Split Frame Advantage
Its split-frame construction permits quick attachment to pressurized lines without flow interruption, dramatically reducing maintenance downtime and increasing job site productivity.
Steel and Aluminum Body Options
Steel body ensures extreme cutting performance on thick-walled pipes, while the aluminum build facilitates easier maneuvering in spatially constrained or elevated work areas.
Flexible Accessories and Drives
Equipped for diverse edge profiles and compatible with all standard drive units, this machine offers unmatched operational flexibility for field machining teams.
POWER OPTIONS
Electric Motor, Pneumatic Motor and Hydraulic Motor
ODM (Electric):
Metabo Electric Motor
Model:W24-230MVT
Motor Power:2.4 Kw (3.22 Hp) / 10 A
Power Supply:220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic):
Pneumatic Motor
Motor Power:2.76 Kw (3.75 Hp)
Air Consumption:2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic):
Hydraulic Motor
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
TOOL SLIDE
3" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
4" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
3" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD168-OD762.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide ( Heavy Wall Beveling Tool Slide), Part No. ODHT-3005A
4" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD830-OD1230.
Install 25 mm width tool bits that can cut / bevel tubes of any wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide ( Heavy Wall Beveling Tool Slide), Part No. ODHT-3006A
Tracking Tool Slide
O.D. Tracking Slide- can be solution for all misshapen tubes and pipes. Tracking Tool Slides feature durable spring and tracking module that follows the contours of a deformed or less than perfectly round pipe. Install 25×25 mm tool bits.
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Counterboring Tool Slide
Designed for the precision counterboring of tube and pipe inside diameter. The Counterboring Tool Slide can be attached directly to the standard tool slide on all OD machines. Install 08×30 mm tool bits.
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
SPLIT FRAME PIPE CUTTING MACHINE SELECTION TABLE
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
|
OD-508 |
355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
TYPES OF GROOVE WELDS
A portable beveling machine can be equipped with different tool slides and tool bits to process V-grooves, J-grooves, and compound grooves, as well as perform internal beveling and boring operations.
ONSITE SPLIT FRAME PIPE CUTTING MACHINE APPLICATIONS
OD762 Split Frame Pipe Cutting Machine Applications

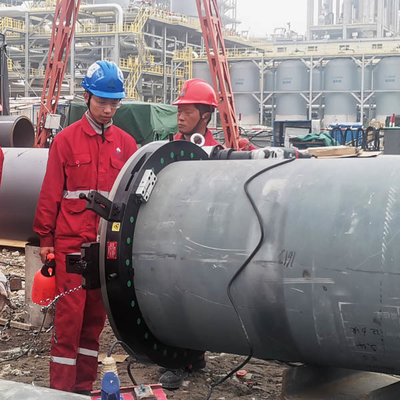

Capable of handling 600mm to 762mm pipes, the OD762 serves oil and gas pipelines, power generation, and heavy industries. It delivers accurate, spark-free cold machining, avoiding heat affectation and ensuring superior weld readiness. The machine is commonly used in compressor stations, refinery expansions, and cross-country pipeline installations. In marine and offshore applications, it supports riser and flowline integration, while in thermal power plants, it maintains main steam and feedwater lines. The split-frame design enhances portability and reduces setup time for large-diameter pipes. It is also effective in water supply networks and industrial complexes for reliable, long-lasting pipe connections. The OD762’s versatility drives efficiency across diverse field operations.
AFTER-SALES SERVICE
Product Warranty
All products are backed by a 12-month warranty from the date of shipment. During this period, any manufacturing defects will be addressed promptly to ensure reliable performance and customer satisfaction.
Spare Parts Supply
We maintain a comprehensive inventory of spare parts to minimize downtime. All spare parts orders are processed and dispatched within 2 business days, ensuring quick delivery and continuous operation of your equipment.
Technical Support & Product Guidance
Each machine is supplied with a detailed instruction manual and step-by-step operation videos. For additional support, our technical team provides real-time video guidance and remote troubleshooting, ensuring that your equipment is operated safely and efficiently.
