30"–36" Tube Cutting And Chamfering Machine Industrial Grade For Large Pipe Machining
| MOQ: | 1 |
| Price: | 3500USD-10500USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
30" Tube Cutting And Chamfering Machine
,30" pipe cold cutting machine
,Industrial Tube Cutting And Chamfering Machine
OD914 Pipe Cutting and Beveling Machine 30 to 36 Inch Cold Cutting and Beveling Machine
The OD914 Pipe Cutting and Beveling Machine handles pipes between 30" and 36" (762–914 mm). Its rugged construction and split frame design make it well-suited for large-scale pipeline projects and heavy industrial maintenance. The OD914 delivers precise, heat-free cutting and beveling, minimizing the risk of material hardening and distortion. It supports a wide range of bevel styles and can be quickly adapted with interchangeable tooling. Ideal for use in oil refineries, chemical processing plants, and offshore platforms, the OD914 ensures efficiency and accuracy under the toughest job site conditions.
SPECIFICATIONS
| Item | ODM914 (Electric) | ODP914 (Pneumatic) | ODH914 (Hydraulic) |
|---|---|---|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 762–914 mm (30"–36") | 762–914 mm (30"–36") | 762–914 mm (30"–36") |
| Wall Thickness | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm |
| Wall Thickness | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
PRODUCT ADVANTAGES
Why Choose the OD914 Pipe Cutting and Beveling Machine?
Industrial-Grade Cutting
Provides accurate cold cutting and beveling for heavy-duty pipelines.
Exceptional Material Range
Performs on carbon steel, stainless steel, and specialty alloys.
Large Pipe Machining
Supports pipe diameters up to 914 mm OD, suitable for infrastructure projects.
Advanced Tool Options
Allows V, J, facing, and chamfering for diverse project requirements.
Reliable Motor Options
Choose from pneumatic, hydraulic, or electric drives for maximum adaptability.
SELECTION GUIDE
Please follow the guidelines below or provide us with your specific requirements so that we can offer you the most professional model selection advice.
1. Choose the Clamshell Material
The OD series clamshell pipe cutting and beveling machines consist of a main body ring and a rotating gear ring. The gear ring is made of heat-treated alloy steel, while the main body ring can be selected in either aluminum or steel.
AOD model (Aluminum): Recommended for on-site machining, especially where lifting equipment is not available.
OD model (Steel): Offers higher strength and longer service life, suitable for heavy-duty and long-term applications.
For model OD560 and below, the machine can be split into two halves for manual handling, regardless of whether it is aluminum or steel. For model OD610 and above, if manual handling is required, we recommend the aluminum body.
2. Choose the Drive Type
ODM (Electric): Suitable for more than 80% of applications. Requires 220V-50Hz power supply and is convenient for on-site use.
ODP (Pneumatic): Suitable for sites with explosion-proof requirements. However, performance may be affected if the air supply is far from the site or if air pressure is low.
ODH (Hydraulic): Recommended for model OD830 and above to ensure greater power. Please note, however, that hydraulic stations are costly and inconvenient to transport.
3. Confirm Pipe Wall Thickness
For wall thickness ≤30 mm, use the standard tool slide.
For wall thickness >30 mm, use the heavy wall tool slide, as different toolbit sizes are required.
4. Confirm Bevel Angle and Bevel Type
The bevel angle and type are required to select suitable toolbits, such as V-type, J-type, or compound bevels.
5. Confirm Pipe Material and Quantity
Pipe material and quantity are necessary to determine the proper toolbits and the number of toolbits required.
PIPE CUTTING AND BEVELING MACHINE SELECTION TABLE
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
|
OD-508 |
355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
OD914 Pipe Cutting and Beveling Machine Application Industries

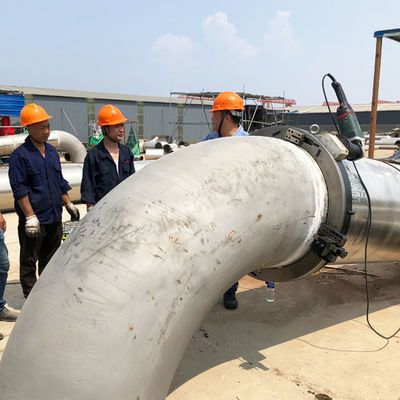

The OD914 pipe cutting and beveling machine is widely applied in large-diameter oil and gas pipelines, ensuring precise cold cutting and beveling without pipe deformation. In nuclear power plants, it supports high-standard weld preparation under strict safety regulations. Shipyard and offshore engineering teams use it for processing oversized pipe joints in harsh environments. It is also suitable for chemical and petrochemical industries, delivering reliable performance when machining corrosion-resistant alloys.
Exhibition Photos
MT Portable Machine, as a professional manufacturer of on-site machining equipment, participates in exhibitions worldwide.
