45RPM Flange Facing Machine
,45RPM manual flange facer
,OD Mounted Flange Facing Machine
FE12 Flange Facing Machine | OD-Mounted Tool for Pipe End and Flange Repair

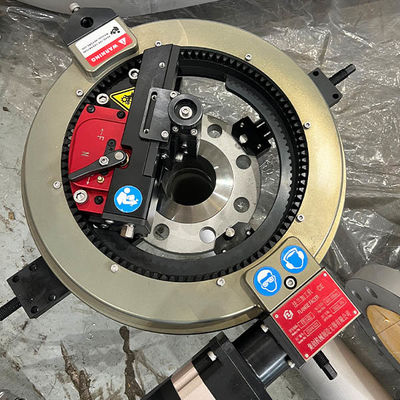

The FE12 Flange Facing Machine is a heavy-duty, OD-mounted solution engineered for precision resurfacing of damaged or corroded flange sealing surfaces up to 12 inches (305 mm) in diameter. Designed for both field and workshop use, this versatile flange facing machine delivers flatness restoration and ASME-compliant spiral serrated finishes, ensuring leak-free flange connections in high-pressure systems.
Its externally mounted (OD-mount) configuration eliminates the need for internal pipe access, making it ideal for applications where internal entry is restricted or hazardous. Suitable for vertical, horizontal, and overhead setups, the FE12 is widely used in the oil and gas industry, petrochemical plants, power generation facilities, and offshore platforms, where reliable flange repair and maintenance are critical to operational integrity. Whether performing routine maintenance or emergency repair, the FE12 provides consistent results, portability, and operator-friendly features that make it a trusted choice for professional machinists.
SPECIFICATIONS
| Item | FE12P (Pneumatic) | FE12E (Electric) |
|---|---|---|
| Model | FE12P Flange Facing Machine | FE12E Flange Facing Machine |
| Drive Type | Pneumatic Motor, 1.34 Hp / 1.0 kW | Panasonic Servo Motor, 1.34 Hp / 1.0 kW |
| Power Supply | 1.3 m³/min @ 0.6 MPa | 220–240V, 50/60 Hz |
| Facing Diameter | 0–12 inches (0–305 mm) | 0–12 inches (0–305 mm) |
| OD Mounting Range | 2–17.7 inches (50–450 mm) | 2–17.7 inches (50–450 mm) |
| Feed Speeds | 0.125 mm/rev & 0.5 mm/rev | 0.125 mm/rev & 0.5 mm/rev |
| Rotation Speed | 45 RPM | 45 RPM |
| Shipping Weight | 94.5 Kg | 138 Kg |
| Shipping Dimensions | 830×620×580 mm (Plastic Box) | 1160×600×510 mm (Steel Box) |
KEY FEATURES
ASME B16.5 Compliant Surface Finish
Produces gramophone-style spiral grooves (30–55 grooves/inch) with Ra 3.2–12.5 µm surface roughness for optimal gasket sealing.
Dual Feed Speeds
Fine feed at 0.125 mm/rev for smooth finishes and 0.5 mm/rev for phonographic serrations.
Flexible Drive Options
Available with pneumatic motor (FE12P) for hazardous zones or electric servo motor (FE12E) for workshop precision.
Externally Mounted
Safe, efficient machining on flanges without pipeline entry, ideal for restricted or overhead spaces.
Durable & Portable
High-rigidity bearings, quick-set clamping arms, and rugged transport cases for long service life in demanding environments.
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
INDUSTRIES AND APPLICATIONS
The FE12 flange facing machine is widely used in industries where precision sealing surfaces are critical to safety, performance, and compliance. Its externally mounted design and ability to generate ASME B16.5-compliant spiral serrated finishes make it the ideal solution for a wide range of flange resurfacing and maintenance tasks in the following sectors:
Oil and Gas Industry
Used extensively for the maintenance of flanged connections in refineries, pipelines, and offshore drilling platforms. The FE12 enables technicians to restore damaged or corroded flange faces on oil lines, gas separators, and pressure vessels—eliminating leaks and preventing costly downtime.
Petrochemical and Chemical Processing
In chemical processing environments, the integrity of flanged joints is crucial for safety and environmental compliance. The FE12 ensures that all flange sealing surfaces meet tight flatness and finish tolerances after shutdowns or gasket failures, reducing the risk of hazardous leaks.
Power Generation Facilities
Applicable to thermal, nuclear, and renewable power plants, this machine efficiently resurfaces high-pressure steam and fluid system flanges. Its precision feed rates and portability make it ideal for use in limited-access turbine halls, boiler rooms, and pipe racks during outages.
Maintenance, Fabrication and Industrial Workshops
The FE12 supports workshop and field teams with consistent, repeatable flange finishing for repair and retrofit projects. Its rugged design and quick setup optimize workflow in environments where power sources and space are limited.
