14 Inch Flange Facing Machine ID Mount Manual Portable Tool For On Site Flange Repair
| MOQ: | 1 |
| Price: | 1350USD-5400USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
14 Inch Flange Facing Machine
,14 Inch manual flange facer
,Portable Flange Facing Machine
14" ID Mount Manual Portable Tool For On-site Flange Repair

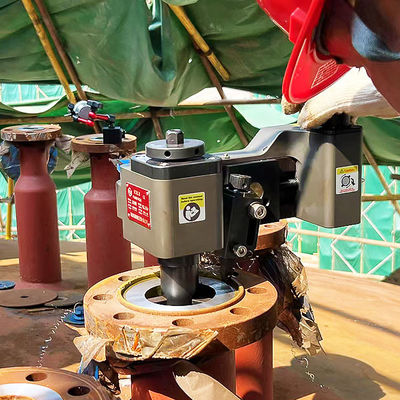

The FI14M Flange Facing Machine is a lightweight, hand-powered portable flange re-machining tool designed for precise on-site resurfacing of damaged flange faces. Engineered for reliability and ease of use, this manual flange facer is the ideal solution for remote or hazardous environments where power access is limited or unavailable.
SPECIFICATIONS
| Model: | FI14M Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2–355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2–270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds |
Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter |
With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
KEY FEATURES
Power-Free Operation
This manual flange facing machine requires no electricity, pneumatic, or hydraulic power — making it ideal for remote field operations, elevated piping systems, or hazardous zones.
Ultra-Portable & Lightweight
Weighing just 9.0 kg, the FI14M can be operated by a single technician. Compact and ergonomic, it is especially suitable for tight spaces, vertical pipelines, and overhead flanges.
Precision Spiral Cutting
Equipped with a manually rotated swing arm and dual-feed system, the tool delivers stock or smooth finish spiral serrations that meet ASME B16.5 flange finish standards.
Fast and Accurate Setup
The tool features MT’s proprietary internal clamping system for quick centering and secure mounting, ensuring concentric facing and consistent depth control on every use.
Industrial-Grade Construction
Made from durable, high-strength machined components, the FI14M offers excellent longevity, even in harsh field conditions.
FLANGE FACER MACHINE SELECTION TABLE
|
Model |
Facing Diameter Range |
ID/OD Mounting Range |
Drive Type |
|
FI14M |
1.07" to 14" (27.2–355.6 mm) |
1.07" to 10.63" (27.2–270 mm) |
Manual |
|
FE12P |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Pneumatic (1.0 kW) |
|
FE12E |
0–12" (0–305 mm) |
2–17.7" (50–450 mm) |
Electric Servo motor (1.0 kW) |
|
FI26P |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Pneumatic (1.0 kW) |
|
FI26E |
4.72–27.56" (120–700 mm) |
3.78–28.35" (96–720 mm) |
Electric Servo motor (1.0 kW) |
|
FI40P |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Pneumatic (1.7 kW) |
|
FI40E |
6–40" (153–1000 mm) |
5.7–35.8" (145–910 mm) |
Electric Servo motor (1.5 kW) |
|
FI60P |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Pneumatic (3.0 kW) |
|
FI60E |
12.6–59" (320–1500 mm) |
11.4–57" (290–1450 mm) |
Electric Servo motor (3.0 kW) |
|
FI80P |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Pneumatic (3.0 kW) |
|
FI80E |
26.34–80" (670–2032 mm) |
31.1–74.8" (790–1900 mm) |
Electric Servo motor (3.0 kW) |
INDUSTRIES AND APPLICATIONS
The FI14M Manual Flange Facing Machine is designed for field maintenance and on-site flange resurfacing in demanding industrial environments. Its fully manual operation and compact form factor make it particularly well-suited for industries where equipment reliability, site accessibility, and operational safety are essential.
Oil and Gas Industry
In upstream, midstream, and downstream sectors, flange integrity is vital for maintaining system pressure and preventing leakage. The FI14M is ideal for use on offshore platforms, pipeline networks, refineries, and processing units, particularly in hazardous or explosion-risk zones where powered equipment is prohibited.
Petrochemical and Chemical Processing
Chemical plants often operate under harsh conditions involving corrosive media and high temperatures. Flanges subjected to repeated thermal cycling or chemical attack may develop sealing issues. The FI14M provides an effective in-situ solution for flange resurfacing during planned turnarounds, emergency shutdowns, or maintenance in confined or classified areas.
Power Generation
Applicable across thermal, nuclear, and renewable power facilities, this tool enables maintenance teams to quickly restore flange surfaces on high-pressure steam and fluid systems. It is especially useful during scheduled outages where downtime must be minimized, and where access is limited—such as in elevated pipe racks or congested turbine halls.
Construction and Industrial Maintenance
During mechanical installations, retrofits, or system upgrades, the FI14M serves as a portable and reliable tool for ensuring proper flange sealing surfaces. It supports contractors and plant maintenance crews in achieving consistent results without relying on external power, which is particularly advantageous on remote sites or during early-stage construction.
