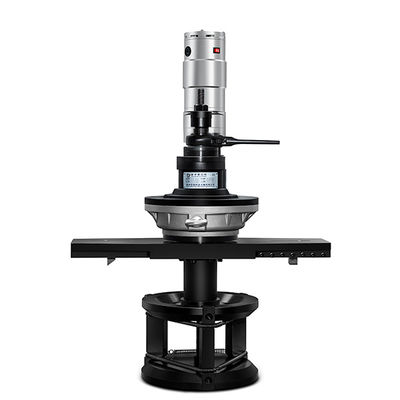

ID630 Pipe Beveler Heavy Duty Internal Mounted Cold Cutting Weld Prep Tool
PRODUCT DESCRIPTION
The ID630 Pipe Beveler is a heavy-duty, internally mounted weld prep lathe designed for large-diameter pipe processing. With a cutting capacity of 11.81" to 24.80" (Φ300mm–630 mm), this powerful machine is ideal for pipe fabrication, maintenance, and on-site machining in power plants, petrochemical facilities, and pipeline projects.
Utilizing a 100% cold cutting process, the ID630 ensures high-quality, heat-free weld end preparation. It performs a variety of operations including V and U beveling, facing, counterboring, and chamfering. The machine features a self-centering three-jaw expanding mandrel for fast, stable internal clamping and is compatible with carbon steel, stainless steel, and alloy materials. Electric and pneumatic motor options are available to meet different working conditions.
KEY FEATURES
Cold Cutting Process
Eliminates heat-affected zones from flame or plasma cutting, ensuring high weld joint integrity.
Wide Material Compatibility
Suitable for machining carbon steel, stainless steel, and various alloy steels.
Powerful Machining Capabilities
Supports V and U beveling, counterboring, end-facing, and chamfering by changing tooling.
Fast and Accurate Setup
Internal clamping with a three-jaw self-centering expanding mandrel enables quick and secure installation.
Adjustable Bevel Angles
Interchangeable tool bits support bevel angles from 0° to 45°; custom angles and tools available upon request.
SPECIFICATIONS
| Item | IDE-630 | IDP-630 |
| Drive Type | MT electric motor | Pneumatic motor |
| Motor Power | 220-240 V, 50/60 Hz | 2.8 m³/min @ 0.6 Mpa |
| Motor Power | 2.2 Kw (2.95 Hp) / 10 A | 2.76 Kw (3.75 Hp) |
| Cutting Range (ID-OD) | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
| ID Mounting Range | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
| Wall Thickness | ≤20 mm (0.79") | ≤20 mm (0.79") |
| Feed Stroke | 40 mm (1.57") | 40 mm (1.57") |
| Rotation Speed | 10 rpm | 10 rpm |
| Working Weight | 106.5 Kg | 107 Kg |
| Shipping Weight | 161 Kg | 160 Kg |
| Crate Dimensions | 1010x715x420 mm | 1010x715x420 mm |
DRIVE OPTIONS
Designed to suit different jobsite environments and operational needs, the ID630 Pipe Beveler comes with a choice of electric or pneumatic drive systems.
IDE630 – MT Electric Motor Drive
The IDE630 is powered by a robust 2.2 kW (2.95 Hp) MT electric motor operating at 220–240 V, 50/60 Hz. It offers consistent torque output and excellent speed control, making it ideal for indoor use in workshops, manufacturing plants, and fabrication facilities with stable electrical supply. This configuration is well-suited for continuous operations requiring precision, repeatability, and minimal operator fatigue.
IDP630 – Pneumatic Motor Drive
The IDP630 features a powerful 2.76 kW (3.75 Hp) pneumatic motor, running at 2.8 m³/min @ 0.6 MPa. Designed for hazardous or remote environments, this air-powered drive is explosion-proof and requires minimal maintenance. Its lightweight design and high-speed performance make it perfect for on-site applications in oil & gas, petrochemical, and offshore industries where electrical sources may be unavailable or restricted.
STANDARD ACCESSORIES
| No. | Description | Qt |
|
1 |
Modle ID630 assembly with motor |
1 |
|
2 |
Jaw block No.1 (Φ330-360 mm,L=15 mm) |
6 |
|
3 |
Jaw block No.2 (Φ360-390 mm,L=30 mm) |
6 |
|
4 |
Jaw block No.3 (Φ390-420 mm,L=45 mm) |
6 |
|
5 |
Jaw block No.4 (Φ420-450 mm,L=60 mm) |
6 |
|
6 |
Jaw block No.5 (Φ450-480 mm,L=75 mm) |
6 |
|
7 |
Jaw block No.6 (Φ480-510 mm,L=90 mm) |
6 |
|
8 |
Jaw block No.7 (Φ510-540 mm,L=105 mm) |
6 |
|
9 |
Jaw block No.8 (Φ540-570 mm,L=120 mm) |
6 |
|
10 |
Jaw blockNo. 9 (Φ570-600 mm,L=135 mm) |
6 |
|
11 |
Jaw blockNo.10 (Φ600-630 mm,L=150 mm) |
6 |
|
12 |
42F-2020-0°,M42 Facing tool, 20×20 mm, 0° |
1 |
|
13 |
42B-2020-30°,M42 Beveling tool, 20×20 mm, 30° |
1 |
|
14 |
42B-2020-37.5°,M42 Beveling tool, 20×20 mm, 37.5° |
1 |
|
15 |
Hex L-key 5 mm |
1 |
|
16 |
Hex L-key 6 mm |
1 |
|
17 |
Combination open end wrench, 30-32 mm |
1 |
| 18 |
Manual and certificates |
1 |
MOUNTING RANGE
| Jaw Blocks and Ramp Sets | |
| Jaw block No. | ID Mounting Range |
|
None |
Φ300-330 mm (11.811" -12.992") |
|
NO.01 |
Φ330-360 mm (12.992"-14.173") |
|
NO.02 |
Φ360-390 mm (14.173"-15.354") |
|
NO.03 |
Φ390-420 mm (15.354"- 16.535") |
|
NO.04 |
Φ420-450 mm (16.535"-17.717") |
|
NO.05 |
Φ450-480 mm (17.717"-18.898") |
|
NO.06 |
Φ480-510 mm (18.898"-20.079") |
|
NO.07 |
Φ510-540 mm (20.079"-21.260") |
|
NO.08 |
Φ540-570 mm (21.260"-22.441") |
|
NO.09 |
Φ570-600 mm (22.441"-23.622") |
|
NO.10 |
Φ600-630 mm (23.622"-24.803") |
TOOLBIT OPTIONS
PIPE BEVELER SELECTION TABLE
| Model | ID Mounting Range | Cutting Range (ID-OD) |
| ID30 | Φ15-28 mm (0.59"-1.10") | Φ15-36 mm (0.59"-1.42") |
| ID90 | Φ25-79 mm (0.98"-3.11") | Φ25-89 mm (0.98"-3.50") |
| ID120 | Φ40-112 mm (1.57"-4.41") | Φ40-120 mm (1.57"-4.72") |
| ID159 | Φ60-160 mm (2.36"-6.30") | Φ60-159 mm (2.36"-6.26") |
| ID219 | Φ65-215 mm (2.56"-8.46") | Φ65-219 mm (2.56"-8.62") |
| ID252 | Φ80-260 mm (3.15"-10.24") | Φ80-273 mm (3.15"-10.75") |
| ID352 | Φ145-345 mm (5.71"-13.58") | Φ145-356 mm (5.71"-14.02") |
| ID426 | Φ250-426 mm (9.84"-16.77") | Φ250-426 mm (9.84"-16.77") |
| ID630 | Φ300-630 mm (11.81"-24.80") | Φ300-630 mm (11.81"-24.80") |
