1.5" Heat Exchanger Tube Facing Machine Compact ID Mounted Pneumatic Tool
| MOQ: | 1 |
| Price: | 1000USD-3000USD |
| Delivery Period: | 5-7 days |
| Payment Method: | T/T |
1.5" Tube Facing Machine
,1.5" pipe end facing machine
,Compact Tube Facing Machine
IDPA38 Heat Exchanger Tube Facing Machine
The Model IDPA38 Pipe beveling and facing machine is an ID Mount Machine tool for facing and chamfering the ends of tubing and tube sheet bores in preparation for welding and finish squaring.
The IDPA38 Heat Exchanger Tube Facing Machine is a compact, ID-mounted pneumatic tool engineered specifically for facing and beveling the ends of heat exchanger tubes. Designed for speed, accuracy, and durability, it ensures clean, square tube ends for optimal weld preparation and sealing. Ideal for fabrication shops, refineries, and power plants, this tool significantly improves efficiency during tube repair or assembly.
SPECIFICATIONS
| Model | IDPA38 Pipe Beveling and Facing Machine |
| Drive type | Pneumatic motor (1.34 Hp / 1.0 Kw) |
| Power supply | 1.3 m³/min @ 0.6 Mpa |
| Cutting range (ID-OD) | 0.551-1.576 inches (14-40 mm) |
| ID mounting range | 0.551-1.340 inches (14-34 mm) |
| Wall thickness | ≤0.138 inches (3.5 mm) |
| Feed stroke | 1.0 inch (25.4 mm) |
| Rotation speed | 220 rpm |
| Working weight | 9.0 Kg |
| Shipping Weight | 30.0 Kg |
| Crate dimensions (L×W×H) | 680×650×275 mm |
PRODUCT ADVANTAGES
Compact & Lightweight
Made from durable 7075 aluminum alloy; total working weight is only 9.0 kg, ideal for on-site handling.
Pneumatic Auto-Locking System
Ensures fast and repeatable setup, reducing downtime during high-volume operations.
Efficient Lever Feed Mechanism
Smooth and fast feed motion reduces operator fatigue.
Versatile Cutting Capability
Includes 10 types of spring collets and 4 cutting heads to match nearly all heat exchanger tube sizes on the market.
Material Flexibility
Handles carbon steel, stainless steel, non-ferrous alloys, Inconel, duplex, and titanium with ease.
High Torque Pneumatic Motor
Delivers enough power to cleanly cut 3.5 mm tube walls.
Precision Bearing System
NSK heavy-duty tapered roller bearings ensure smooth, rigid operation.
Adjustable Stops
Set both mounting depth and cutting depth for accurate, repeatable results.

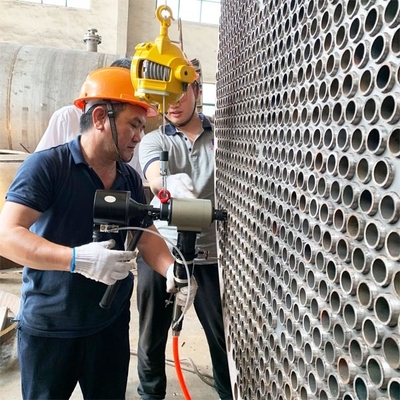

Overhead Mounting Ready
Includes hoist ring for balancer use in suspended work.
Portable & Protected
Comes in a compact, rugged transport case for safe storage and mobility.
APPLICATION INDUSTRIES
- Heat Exchanger and Boiler Manufacturing
- Refinery and Petrochemical Plants
- Power Generation Facilities
- Marine and Offshore Engineering
- Industrial Fabrication Workshops
- Chemical Processing Plants
The IDPA38 excels in any application requiring precise tube end preparation before welding or reassembly.
Optimize Your Tube Maintenance Today
The IDPA38 Heat Exchanger Tube Facing Machine delivers consistent, high-precision results with minimal setup time. Lightweight yet powerful, it is the ideal tool for professionals seeking speed, reliability, and versatility in demanding environments.
Frequently Asked Questions (FAQ)
Q1: What is the main function of this machine?
A: It is designed to face and bevel the ends of heat exchanger tubes to ensure proper fit-up and sealing.
Q2: Can it be used on stainless steel and exotic alloys?
A: Yes. It cuts all machinable alloys including stainless steel, duplex, Inconel, and titanium.
Q3: How easy is it to set up?
A: The pneumatic auto-lock system and adjustable stops allow for rapid and accurate mounting, even in repetitive tasks.
Q4: What is the max wall thickness it can cut?
A: The tool can handle tube walls up to 3.5 mm (0.138 inches).
